Production Team Model

1. Function Overview

The Production Team Model belongs to the basic module of the MES system. It is used to build the production team, production shift, and production member data of the enterprise, providing organizational basic data support for production scheduling.

Core Functions:

• Team Management: Maintain the addition, deletion, modification, and query of production teams
• Schedule Plan Management: Maintain the addition, deletion, modification, and query of production schedules
• Schedule Calendar: View the time planning and scheduling information of production schedules

Function Screenshot:

2. Term Explanation

Term	Definition	Description
Production Team	Production Team, production operation organization unit	Used to organize and manage production personnel
Team Members	Production Members, members of the team	Operators belonging to a specific team
Schedule Plan	Production Schedule, team's schedule plan	Defines working hours and task allocation for the team
Rotation Method	Rotation Schedule, team's scheduling method	Such as rotation shifts, fixed scheduling, etc.
Rest Day Selection	Rest Day Schedule, team's rest day selection	Defines which days are rest days

Relationship Description:

Relationship Type	Description
Team → Shift	1 to N: A team can contain multiple shifts
Team → Production Members	1 to N: A team can contain multiple production members

3. Production Team Model Interaction Flow

3.1 Team Management

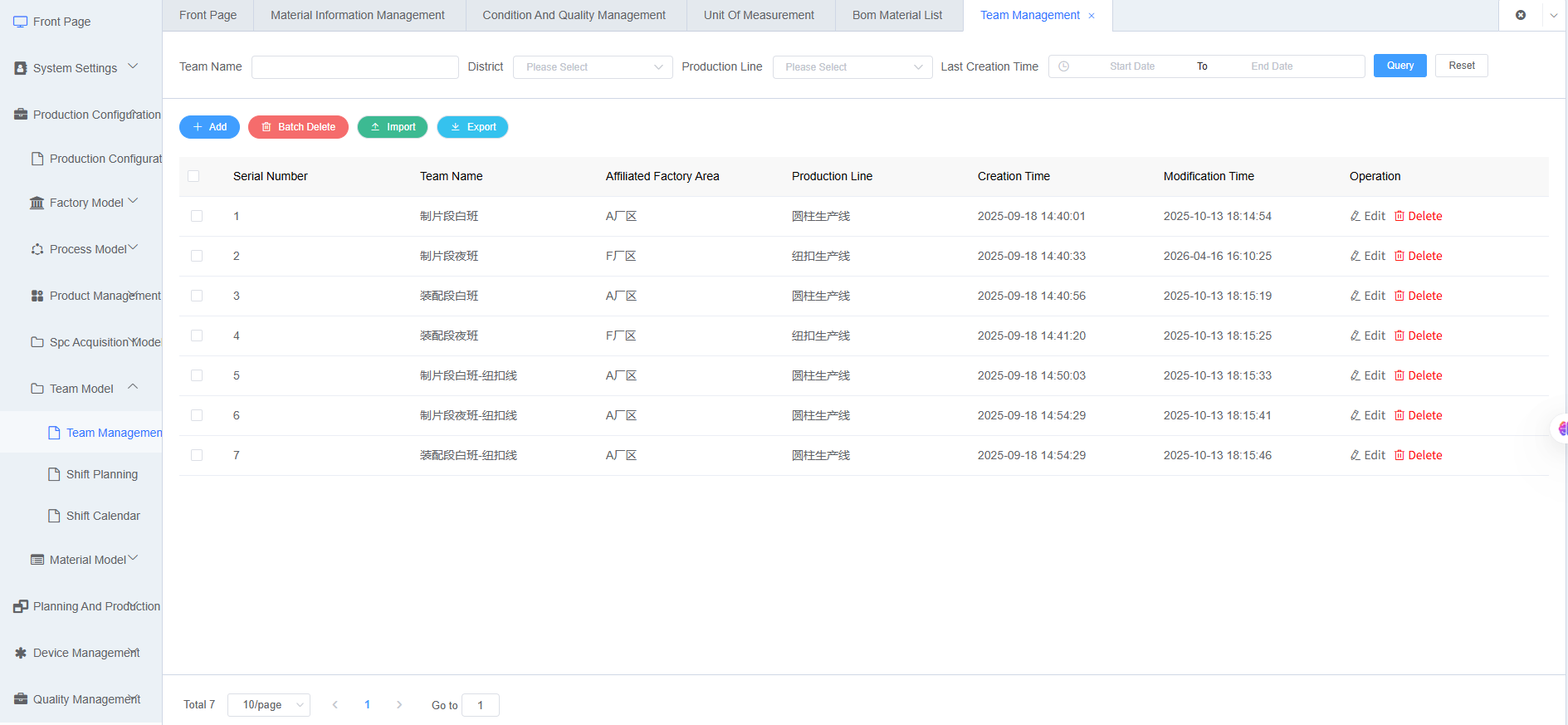

3.1.1 Team Description

A team is the basic organizational unit for production operations, used to assign production personnel.

Function Screenshot:

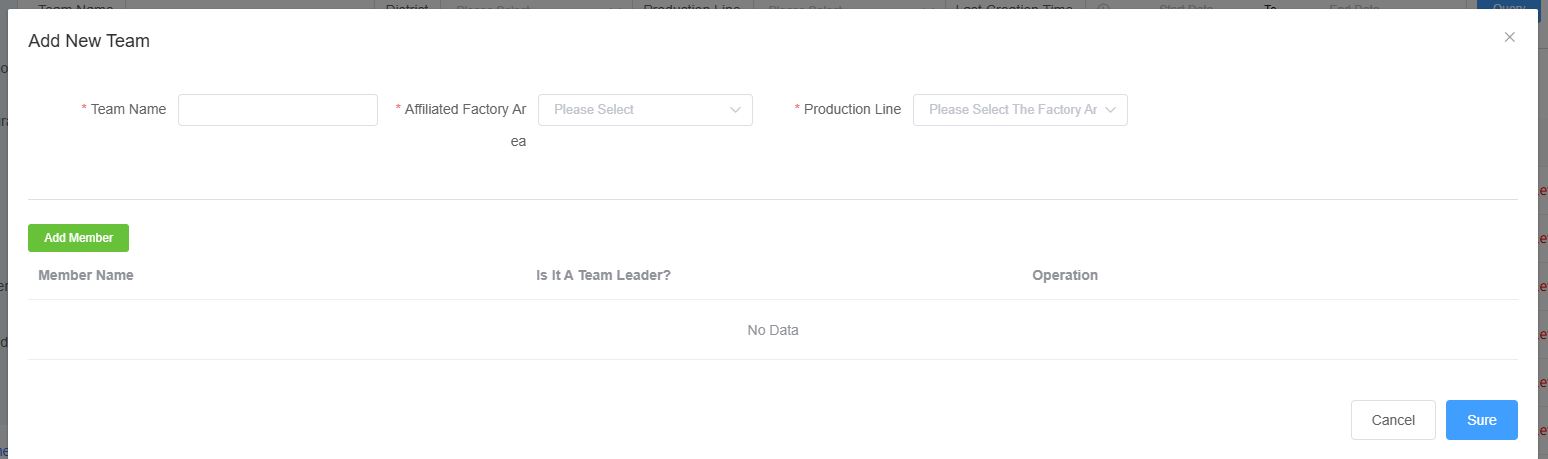

3.1.2 Add Team

Operation Steps:

1. Go to [Production Configuration] → [Team Model] → [Team Management]
2. Click [Add] button
3. Fill in basic team information
4. Add team members
5. Click [OK] to complete team creation

Field Description:

Field	Description	Required
Team Name	Name of the team, e.g., "Packaging Team"	Yes
Belonging Factory Area	Production factory area where the team belongs, e.g., "Factory A"	Yes
Belonging Production Line	Production line where the team belongs, e.g., "Packaging Line"	Yes

[Important] The team code cannot be modified after creation. Please confirm carefully when creating.

Function Screenshot:

3.1.3 Team Query

Query Conditions:

Query Condition	Description
Team Name	Fuzzy query by team name
Belonging Factory Area	Filter by team's factory area
Belonging Production Line	Filter by team's production line
Creation Time	Filter by team creation time

3.2 Schedule Plan

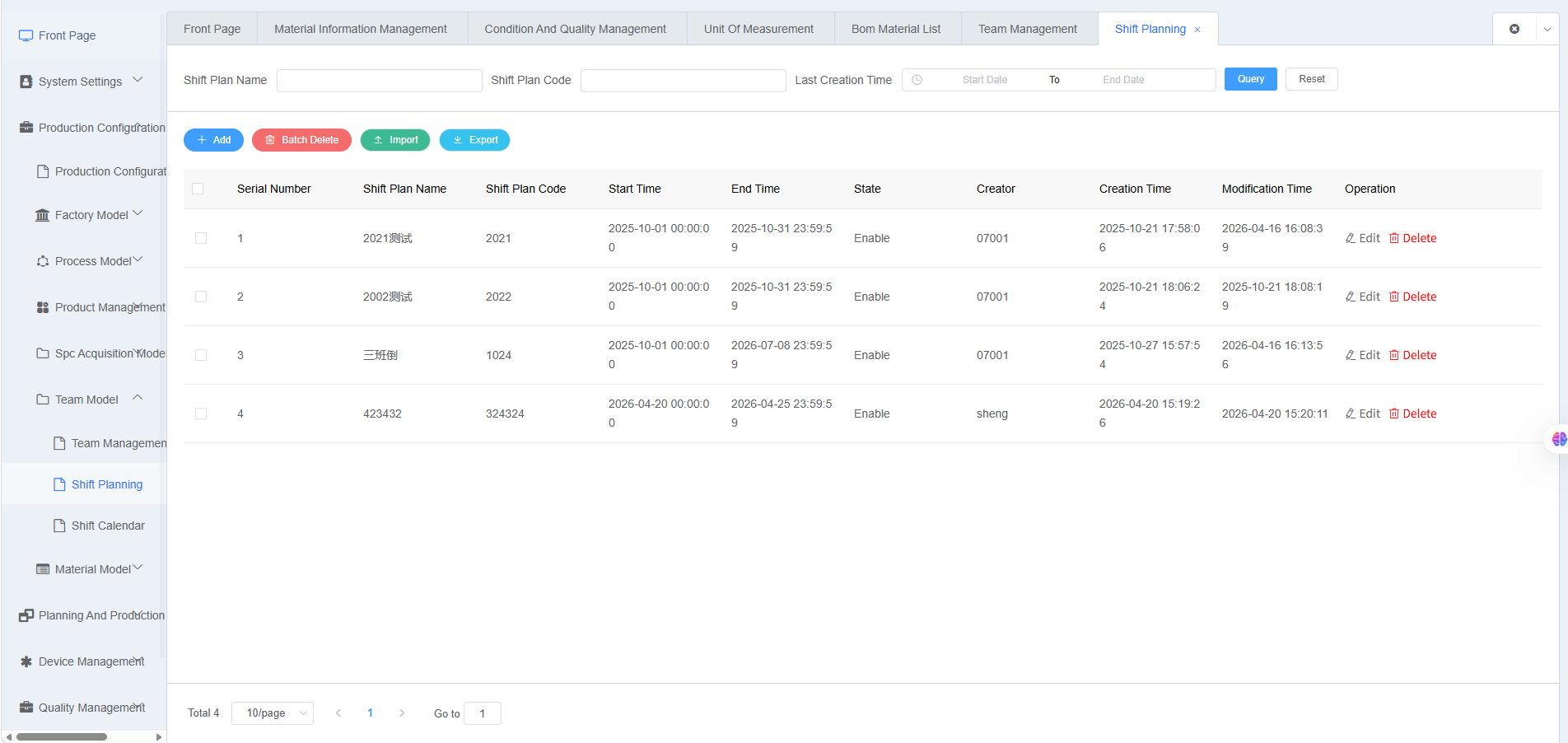

3.2.1 Schedule Plan Description

A schedule plan is the basic division of team working hours, used to manage the time arrangement of production operations.

Function Screenshot:

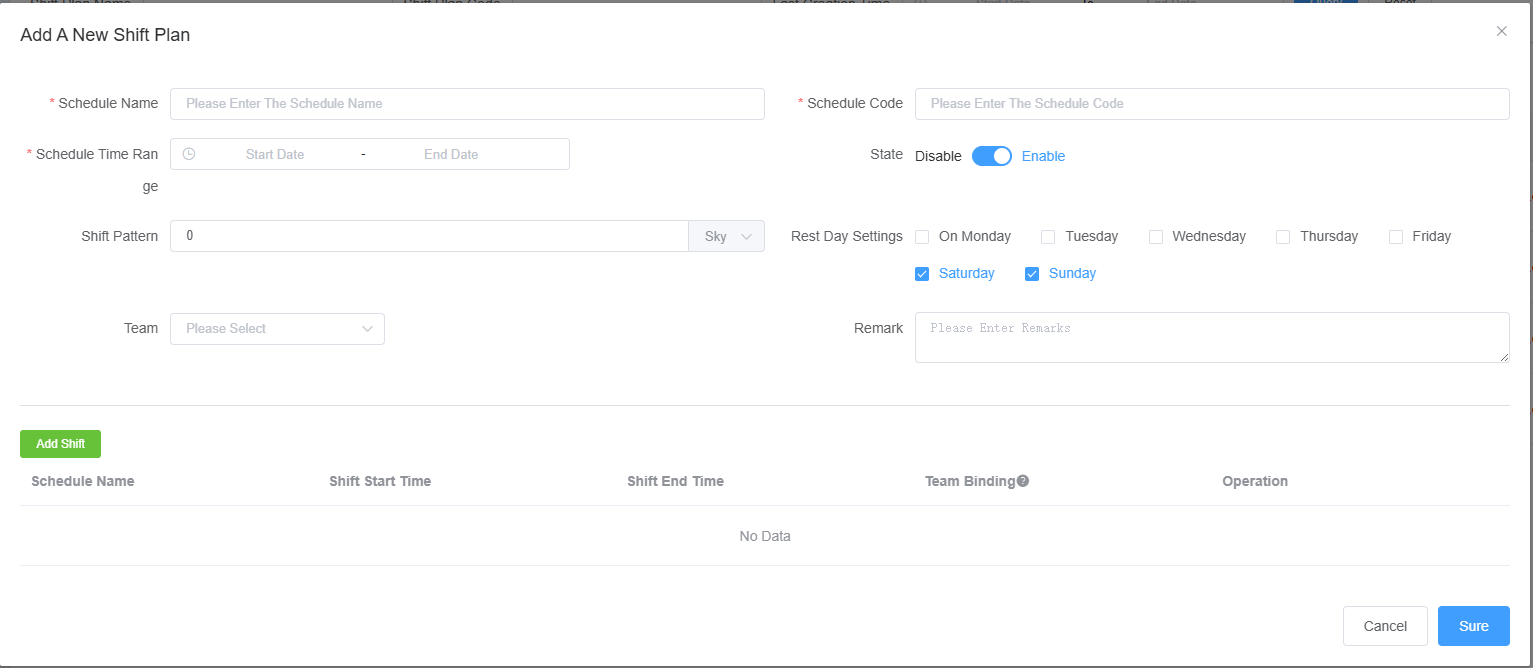

3.2.2 Add Schedule Plan

Operation Steps:

1. Go to [Production Configuration] → [Team Model] → [Schedule Plan]
2. Click [Add] button
3. Fill in basic schedule plan information
4. Click [OK] to complete schedule plan creation

Field Description:

Field	Description	Required
Schedule Name	Name of the schedule plan, e.g., "Morning Shift", "Afternoon Shift", "Evening Shift"	Yes
Schedule Code	Unique identification code of the schedule plan	Yes
Schedule Time Range	Time range of the schedule plan, e.g., "9:00-17:00"	Yes
Status	Status of the schedule plan, e.g., "Enabled", "Disabled"	No
Team	Teams included in the schedule plan	No
Remarks	Other supplementary information	No

[Important] The schedule plan code cannot be modified after creation. [Important] The schedule plan cannot be deleted once referenced by schedule records.

Function Screenshot:

3.2.3 Schedule Plan Query

Query Conditions:

Query Condition	Description
Schedule Code	Exact query by schedule code
Schedule Name	Fuzzy query by schedule name
Creation Time	Filter by schedule plan creation time

Function Screenshot:

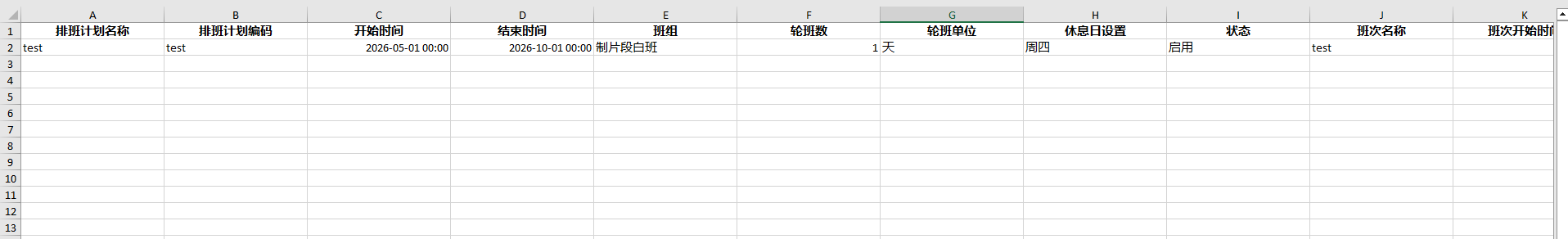

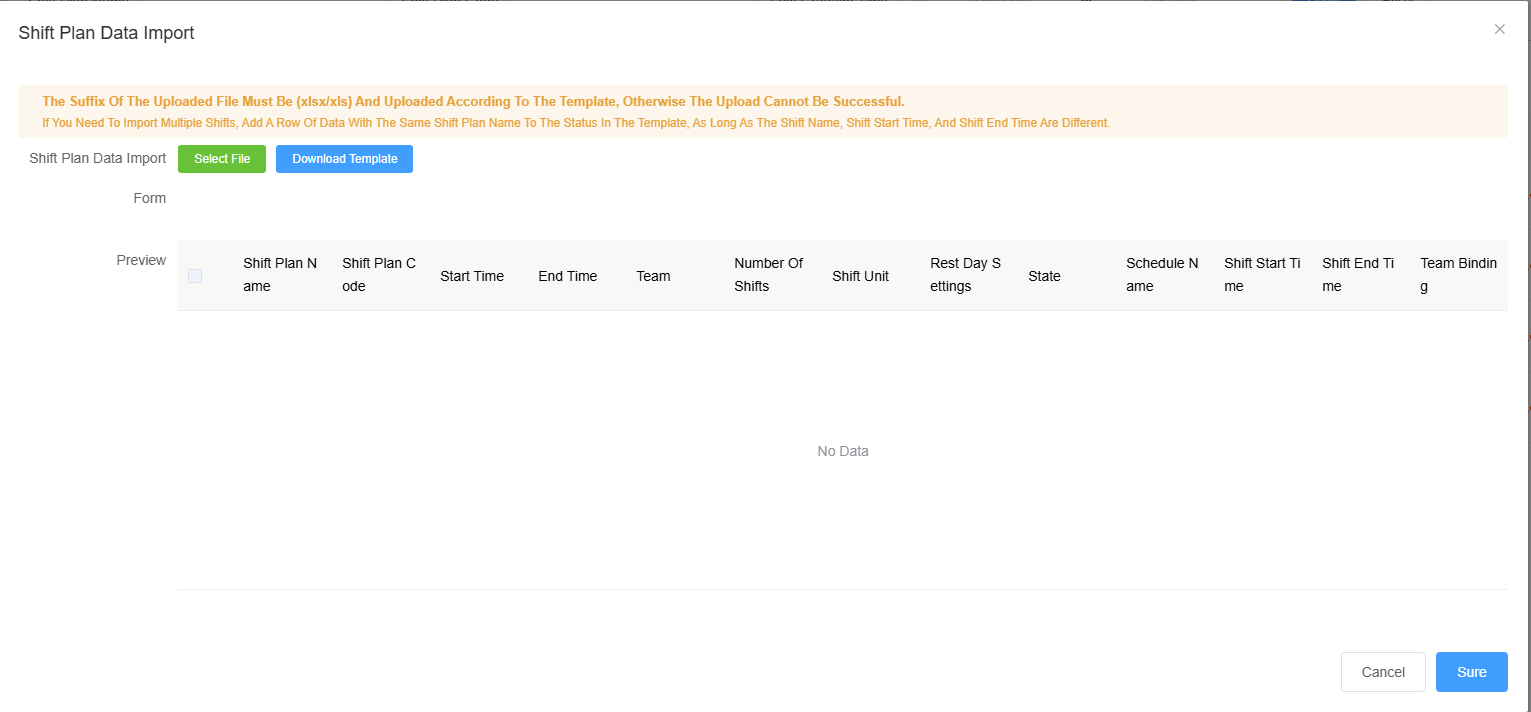

3.2.4 Import Schedule Plan

Operation Steps:

1. Go to [Production Configuration] → [Team Model] → [Schedule Plan]
2. Click [Import] button
3. Upload schedule plan file
4. Click [OK] to complete schedule plan import

Function Screenshot:

3.2.4 Export Schedule Plan

Operation Steps:

1. Go to [Production Configuration] → [Team Model] → [Schedule Plan]
2. Click [Export] button
3. Select export format (e.g., Excel)
4. Click [OK] to complete schedule plan export

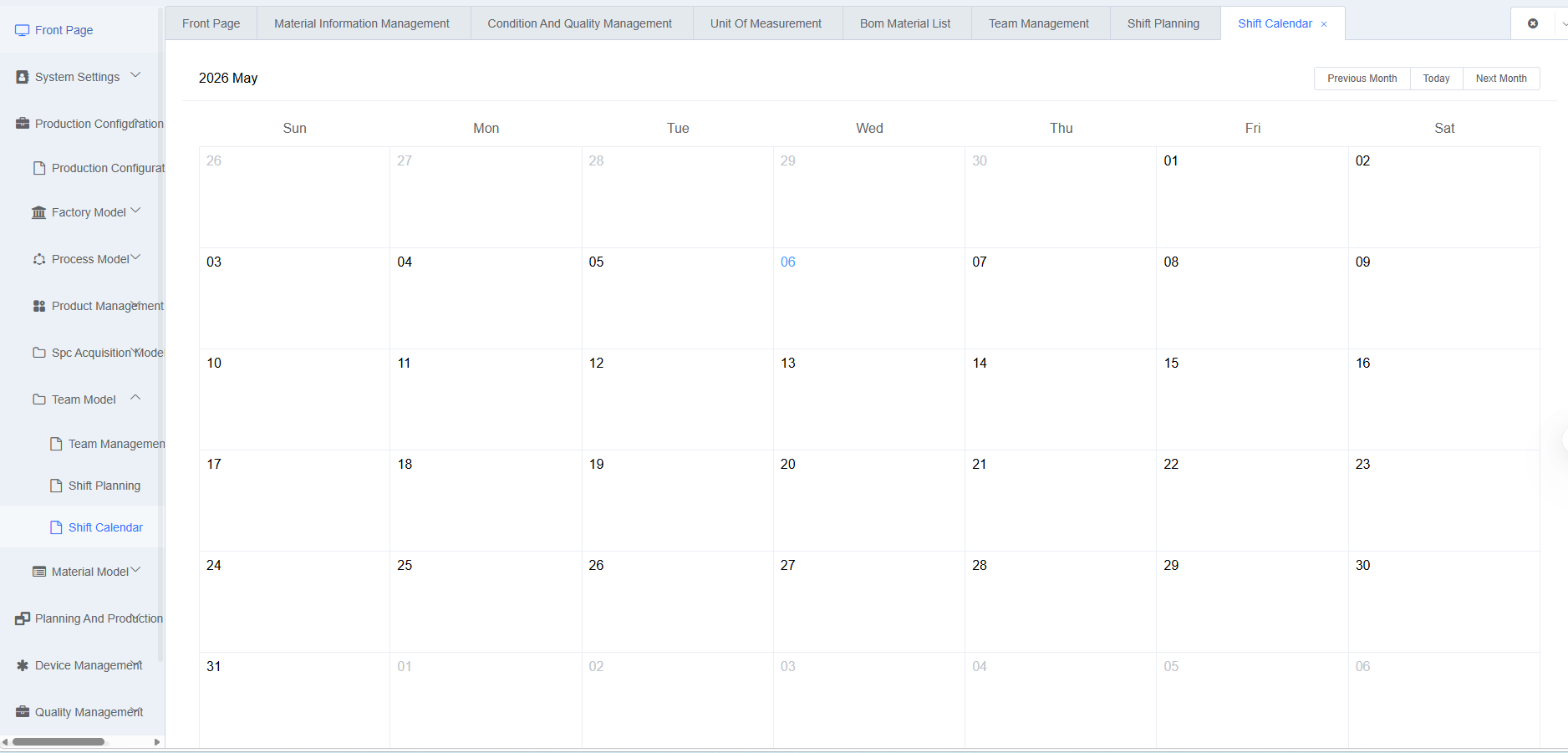

3.2.5 Schedule Calendar

The schedule calendar is a visual display of the team's schedule plan, used to view and manage schedule plans.

Function Screenshot:
