Factory Area Model

1. Function Overview

The Factory Area Model belongs to the basic module of the MES system. It is used to build the factory areas and production lines for the MES system, providing data support for team management, batches, and environmental control data creation.

Core Functions:

• Factory Area Management: Maintain the addition, deletion, modification, and query of factory areas
• Production Line Management: Maintain the addition, deletion, modification, and query of production lines

Function Screenshot:

2. Term Explanation

2.1.1 Factory Modeling Related Terms

Term	Definition	Description
Factory Area	Area, production manufacturing area	Used to correspond to production lines
Production Line	Production Line, production line body	Used to correspond to production teams and production workshops

3. Factory Area Model Structure

3.1 Module Hierarchy Description

The factory area model structure adopts hierarchical management, from top to bottom: Factory → Production Line.

Module Hierarchy Structure:

flowchart TD
    A[Factory Area Settings Area]
    A --> B[Production Line]

Level	Name	Description
1	Factory	Independent production manufacturing unit
2	Production Line	Specific production line body

3.2 Add/Edit Factory

Operation Steps:

1. Go to [Production Configuration] → [Factory Area Model] → [Factory Area Settings]
2. Click [Add/Edit Factory] button, select [Add/Edit Factory] button as needed
3. Fill in basic factory information
4. Click [Save] to complete factory creation

Field Description:

Field	Description	Required
Factory Code	Unique identification code of the factory, usually using abbreviations	Yes
Factory Name	Full name of the factory, e.g., "** Factory Area"	Yes
Remarks	Other supplementary information	No

[Important] Once the factory code is bound to a production line, it cannot be modified. Please confirm carefully when creating.

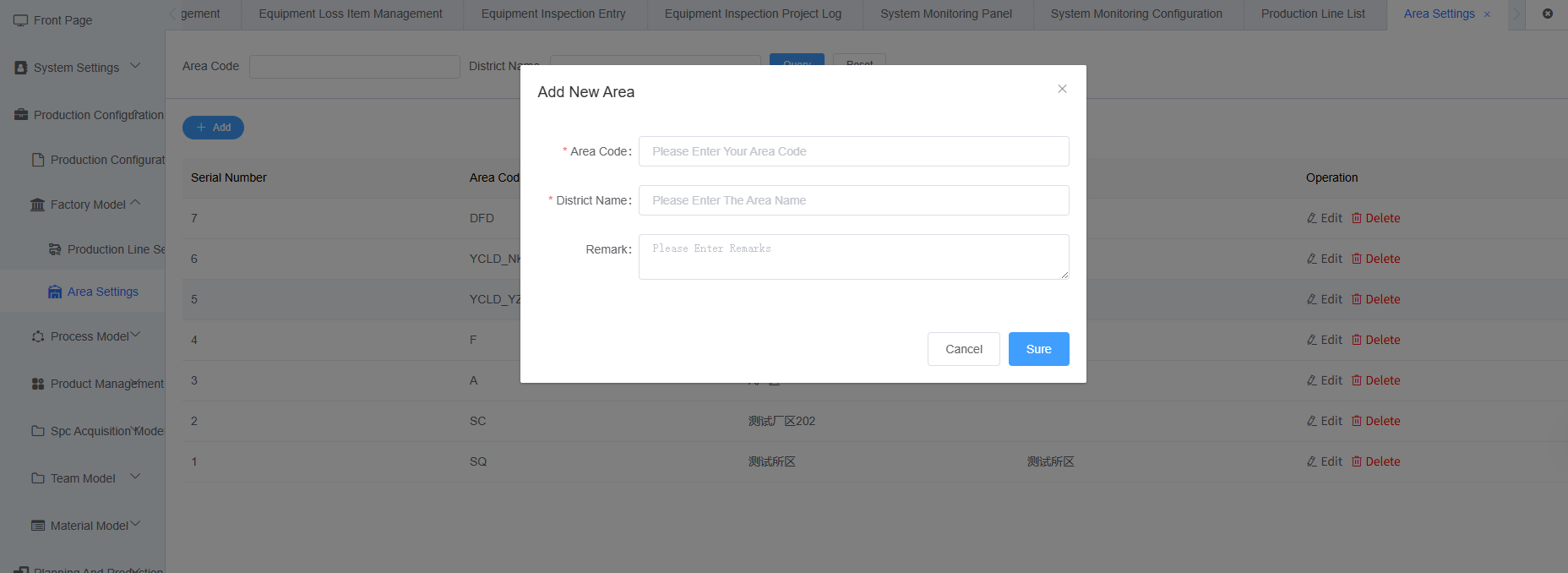

Function Screenshot:

3.3 Add/Edit Production Line

Operation Steps:

1. Go to [Production Configuration] → [Factory Area Model] → [Production Line Settings]
2. Click [Add/Edit Production Line] button, select [Add/Edit Production Line] button as needed
3. Fill in basic production line information
4. Click [Save] to complete production line creation

Field Description:

Field	Description	Required
Production Line Code	Unique identification code of the production line	Yes
Production Line Name	Name of the production line, e.g., "** Production Line"	Yes
Belonging Factory Area	Belonging factory area	Yes
Remarks	Other supplementary information	No

[Note] Once the production line code is bound to a workshop, it cannot be modified. Please confirm carefully when creating.

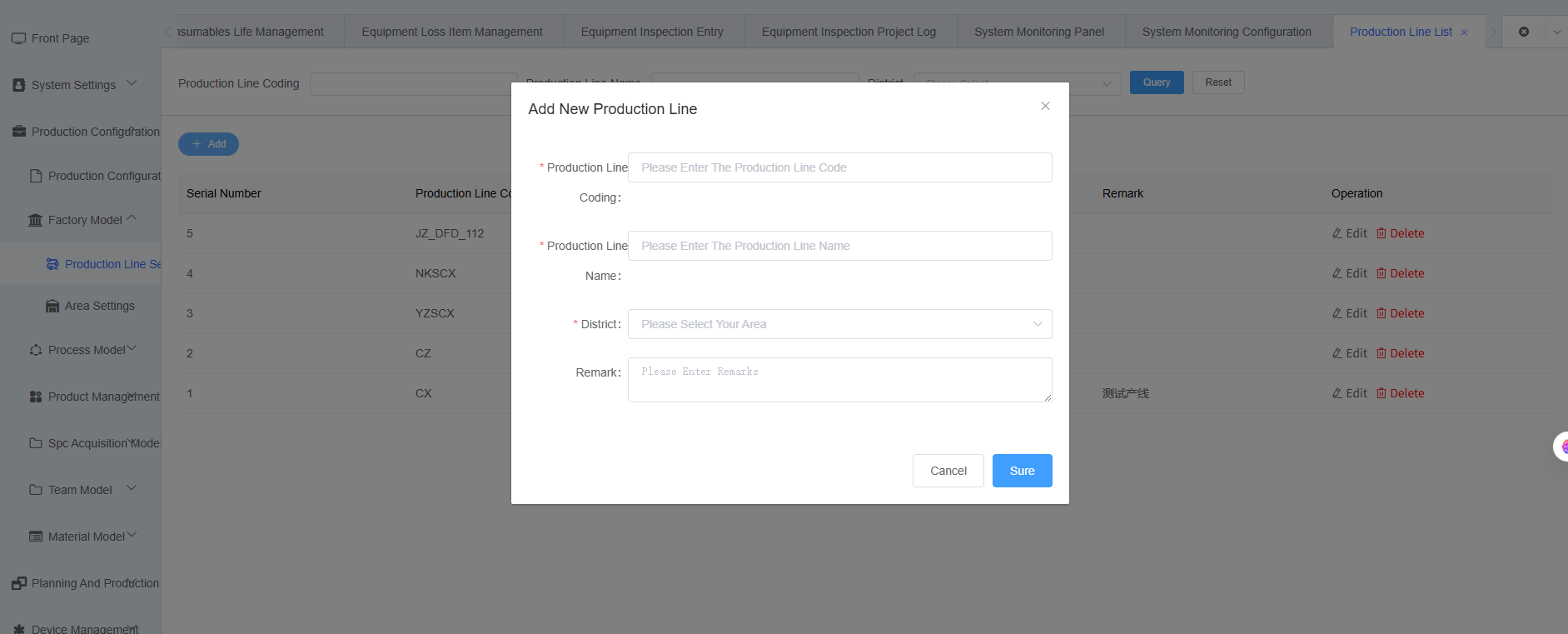

Function Screenshot:

3.4 Query Operation - Factory

Query Conditions:

Query Condition	Description
Name	Fuzzy query by factory area name
Code	Fuzzy query by factory area code

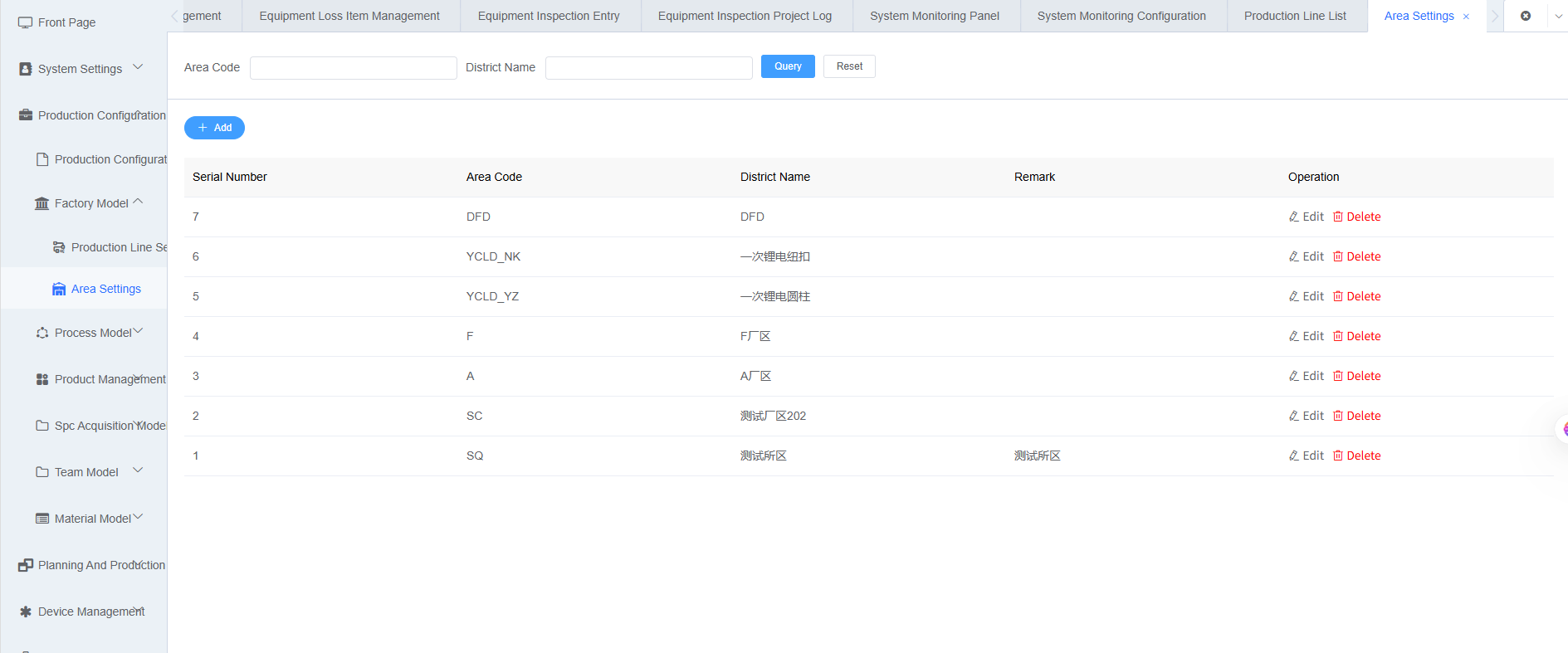

Function Screenshot:

3.5 Query Operation - Production Line

Query Conditions:

Query Condition	Description
Name	Fuzzy query by production line name
Code	Fuzzy query by production line code

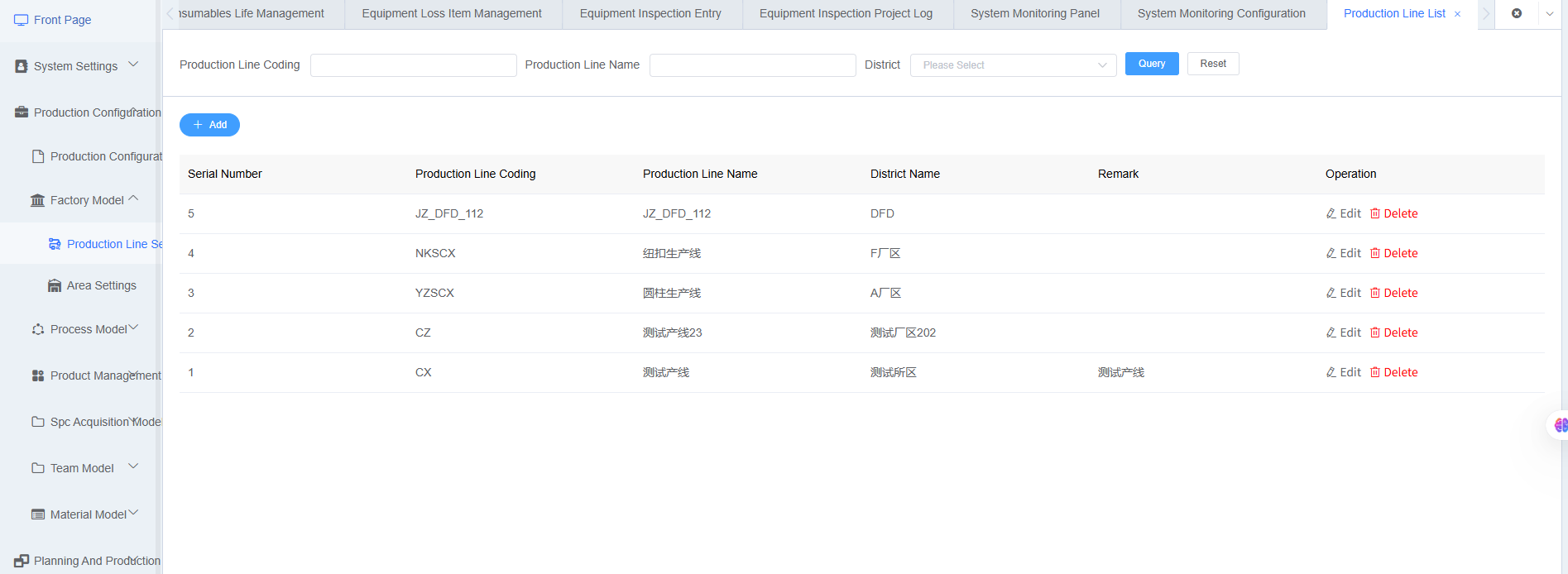

Function Screenshot:
