Battery Traceability

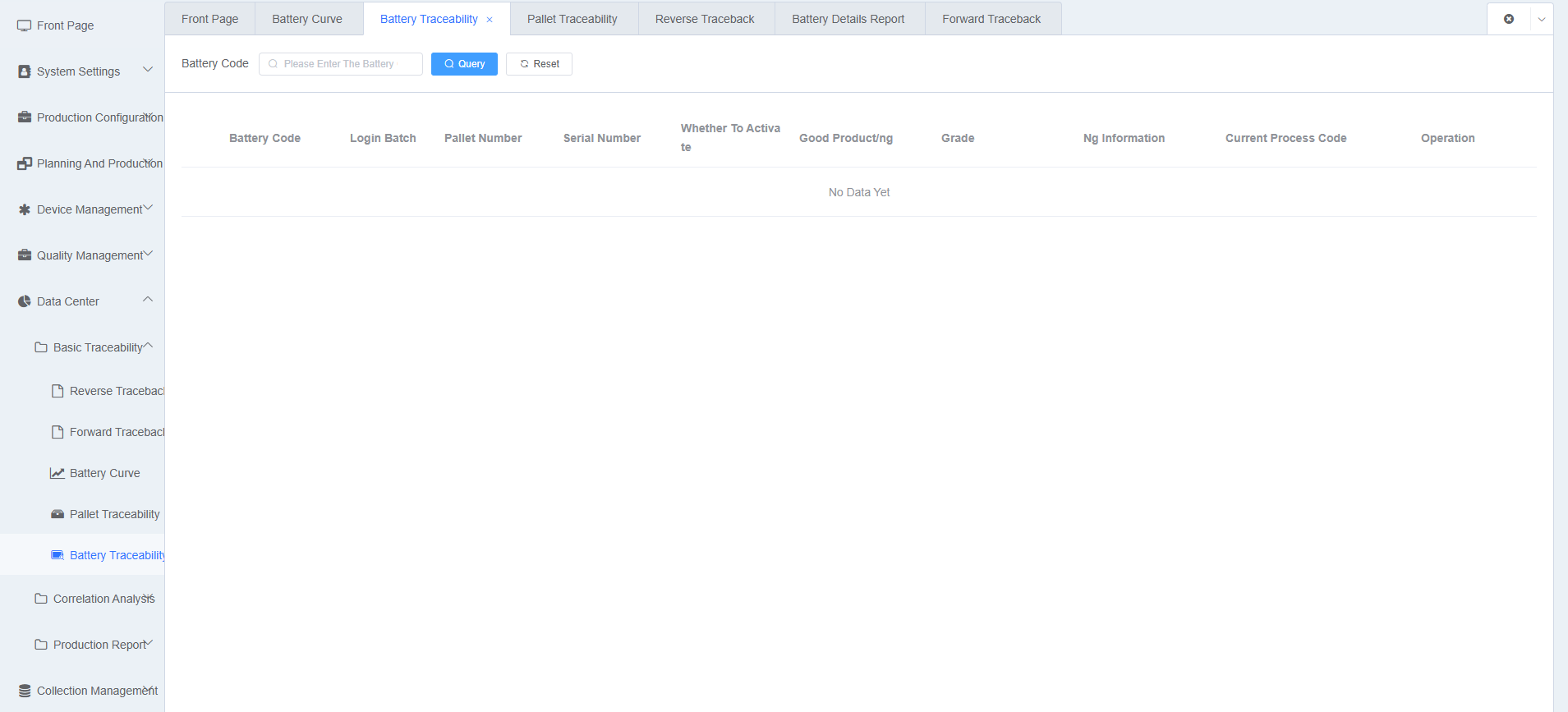

1. Function Overview
Battery Traceability belongs to the Basic Traceability module of the MES system's Data Middle Platform. It is used to query battery information such as registration batch, tray location, activation status, good/NG judgment, etc., based on battery ID. Users can also access the battery detail page to view process set values and result parameter data for the battery across all processes.
Core Functions:
- Battery Information Query: Query basic information and production status of batteries by battery ID
- Process Tree Display: Intuitively display battery BOM material composition structure as an organizational tree
- Battery Detail View: View detailed process data (set values and result parameters) for each process
- Assembly Detail View: View material input (In) and output (Out) information for the current process
- Deactivate: Deactivate an activated battery, preventing it from continuing production
- Reactivate for Retrial: Reactivate an NG battery to allow it to continue production from the next process
Screenshots:
2. Term Definitions
| Term | Definition | Description |
|---|---|---|
| Battery Traceability | Query production status and process details of batteries | Starting from battery ID, view complete process data across all processes |
| Battery ID | Unique identifier for a battery in the system | Query entry condition |
| Registration Batch | Batch number when battery first registered into the system | Original production batch of the battery |
| Tray ID | Tray number carrying the battery | Tray location during production line transfer |
| Serial No. | Serial number within the batch | Sequence number of tray within the batch |
| Activated | Whether battery is in producible state | Active (producible) / Stopped (non-producible) |
| Good/NG | Quality judgment result of battery | GOOD (good) / NG (defective) |
| Grade | Capacity grade of battery | Such as K1, K2, F1, etc. |
| Process Tab | Process navigation button list on the left in battery details | Click to switch between different process data |
3. Battery Traceability Query
3.1 Query Description
By entering a battery ID, query basic information including registration batch, tray location, serial number, activation status, good/NG judgment, grade, and current process.
Query Conditions:
| Condition | Description | Required |
|---|---|---|
| Battery ID | Enter the battery ID to trace | Yes |
[Note] Can also jump to this page from other pages with battery ID as a route parameter, and the system will automatically execute the query.

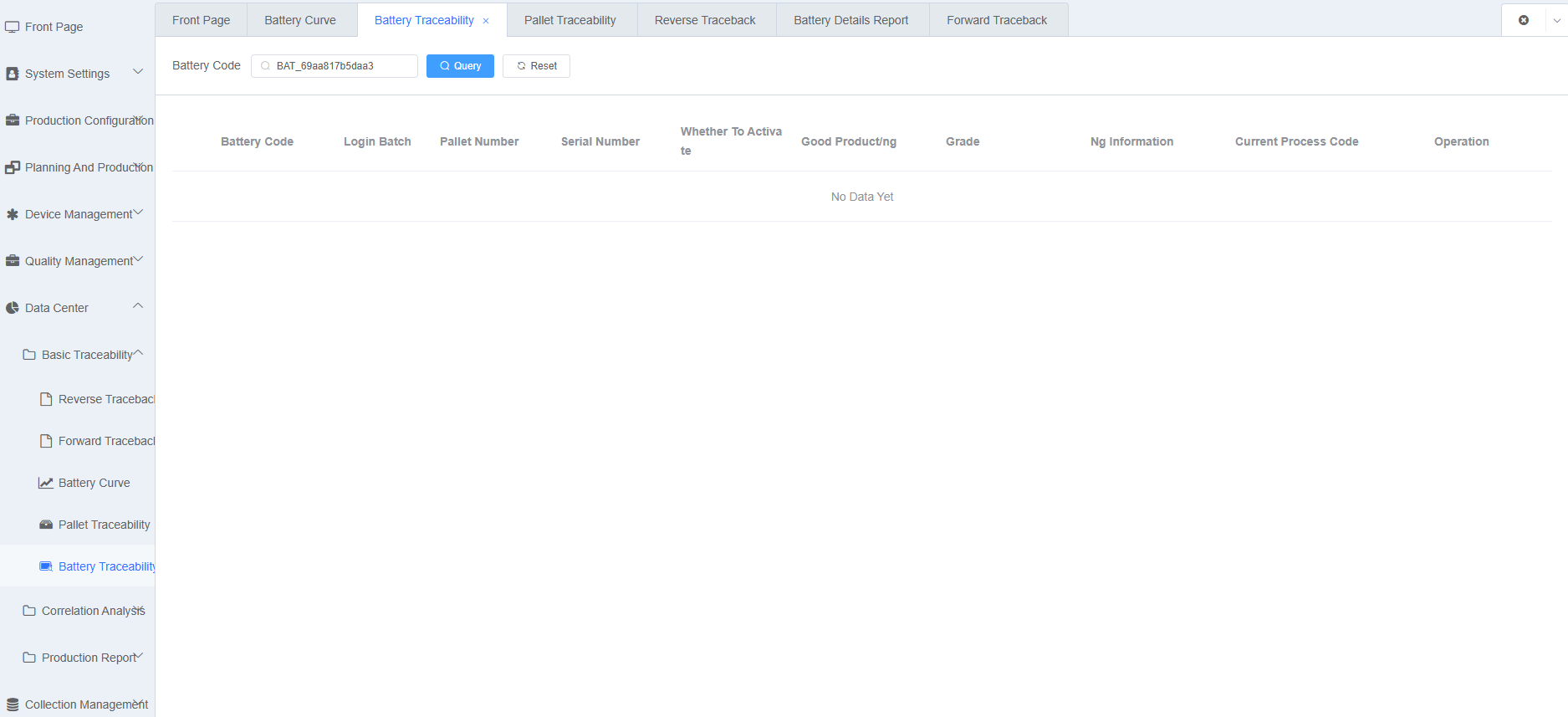

3.2 Query Steps
- Go to [Data Middle Platform] → [Basic Traceability] → [Battery Traceability]
- Enter the battery ID in the search box
- Click [Query] button, system displays battery information list
Screenshots:

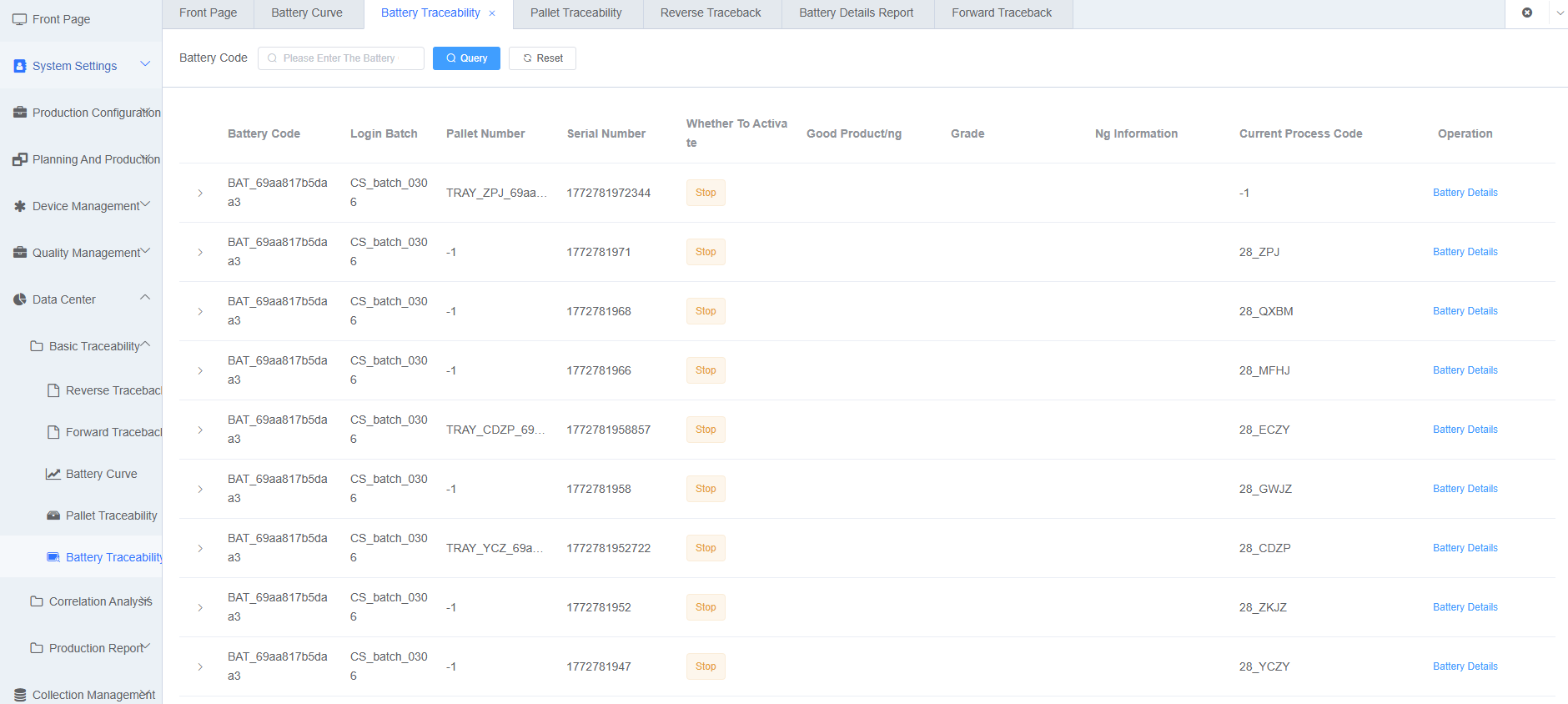

3.3 Query Result Field Description
| Field | Description |
|---|---|
| Battery ID | Unique identifier for battery in system |
| Registration Batch | Production batch number when battery first registered |
| Tray ID | Tray number of battery |
| Serial No. | Serial number of tray within batch |
| Activated | Current status: Activated (green tag) or Stopped (orange tag) |
| Good/NG | Quality judgment: GOOD (green tag) or NG (orange tag) |
| Grade | Capacity grade of battery |
| NG Info | Specific defect reason description for defective products |
| Current Process ID | Current process ID of battery |
Screenshots:

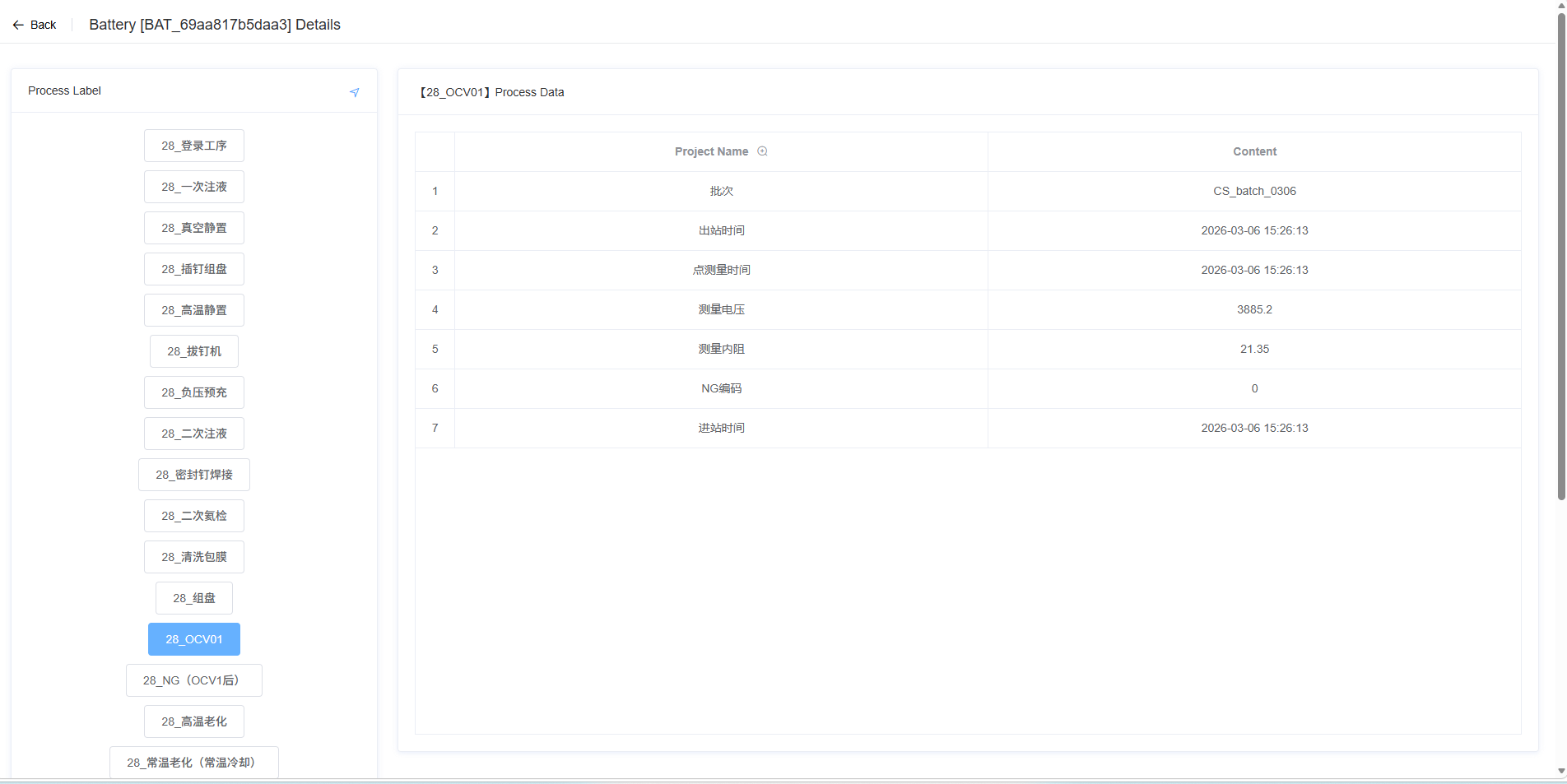

4. Battery Details
4.1 Details Description
Click [Battery Details] button in the action column to enter the full-screen details page. The page is divided into two areas:
- Left - Process Tabs: Display all processes the battery has undergone as buttons
- Right - Process Data: Display detailed process data for the currently selected process
4.2 Operation Steps
- In the query result list, click [Battery Details] button for the target battery row
- System enters full-screen details page, left side shows process tab list
- First process tab is selected by default, right side shows data for that process
- Click other process tabs on the left to switch between different process data
- Click the back arrow in the upper left corner to exit the details page
Screenshots:
4.3 Process Data Field Description
Process data is displayed in tabular form with three columns: Serial No., Item Name, and Content. Different process types display different data items.
Common Data Items:
| Item Name | Description |
|---|---|
| Batch | Production batch of battery |
Charge/Discharge Process (Capacity Grading) Data Items:
| Item Name | Description |
|---|---|
| Channel No. | Channel number of battery in equipment |
| Equipment No. | Equipment number executing this process |
| Capacity Grade | Capacity grade of battery |
| Grade | Capacity grade level |
| Charge End Voltage | Open-circuit voltage after last CC/CV charge |
| Charge Capacity | Cumulative capacity from multiple CC/CV charges |
| Original Discharge Capacity | Cumulative original capacity from CC discharge |
| Discharge Capacity | Cumulative capacity from multiple CC discharges |
| Charge Start Time | Start time of charge process |
| Charge End Time | End time of charge process |
| Discharge Start Time | Start time of discharge process |
| Discharge End Time | End time of discharge process |
| Constant Voltage Charge Time | Cumulative CV charge duration (minutes) |
| Constant Current Charge Time | Cumulative CC charge duration (minutes) |
| Total Discharge Time | Cumulative CC discharge duration (minutes) |
| Charge Start Temperature | Temperature at charge start (℃) |
| Discharge End Temperature | Temperature at discharge end (℃) |
Shipment Charge/Discharge Process Data Items:
| Item Name | Description |
|---|---|
| Channel No. | Channel number of battery in equipment |
| Equipment No. | Equipment number executing this process |
| Capacity Grade | Capacity grade of battery |
| Grade | Capacity grade level |
| Measured Voltage | Voltage after charge |
| Charge Capacity | Cumulative capacity from CC charge |
| Charge Start Time | Start time of charge process |
| Charge End Time | End time of charge process |
| Constant Voltage Charge Time | Cumulative CV charge duration (minutes) |
| Constant Current Charge Time | Cumulative CC charge duration (minutes) |
| Charge Start Temperature | Temperature at charge start (℃) |
| Discharge End Temperature | Temperature at discharge end (℃) |
Other Regular Process Data Items:
Display result parameters configured in the process model for that process. Each result parameter name is displayed with its actual collected value. When a result parameter is "defective" or "defective code", the system automatically converts the defective code to the corresponding defect reason description.
[Note] Capacity grade and grade information are not displayed for loading processes (DENGLU).
4.4 Process Data Search
In the "Item Name" header of the process data table, click the magnifying glass icon to expand the search input box. Enter keywords to quickly filter target data items. Click [Close] button to collapse the search box.

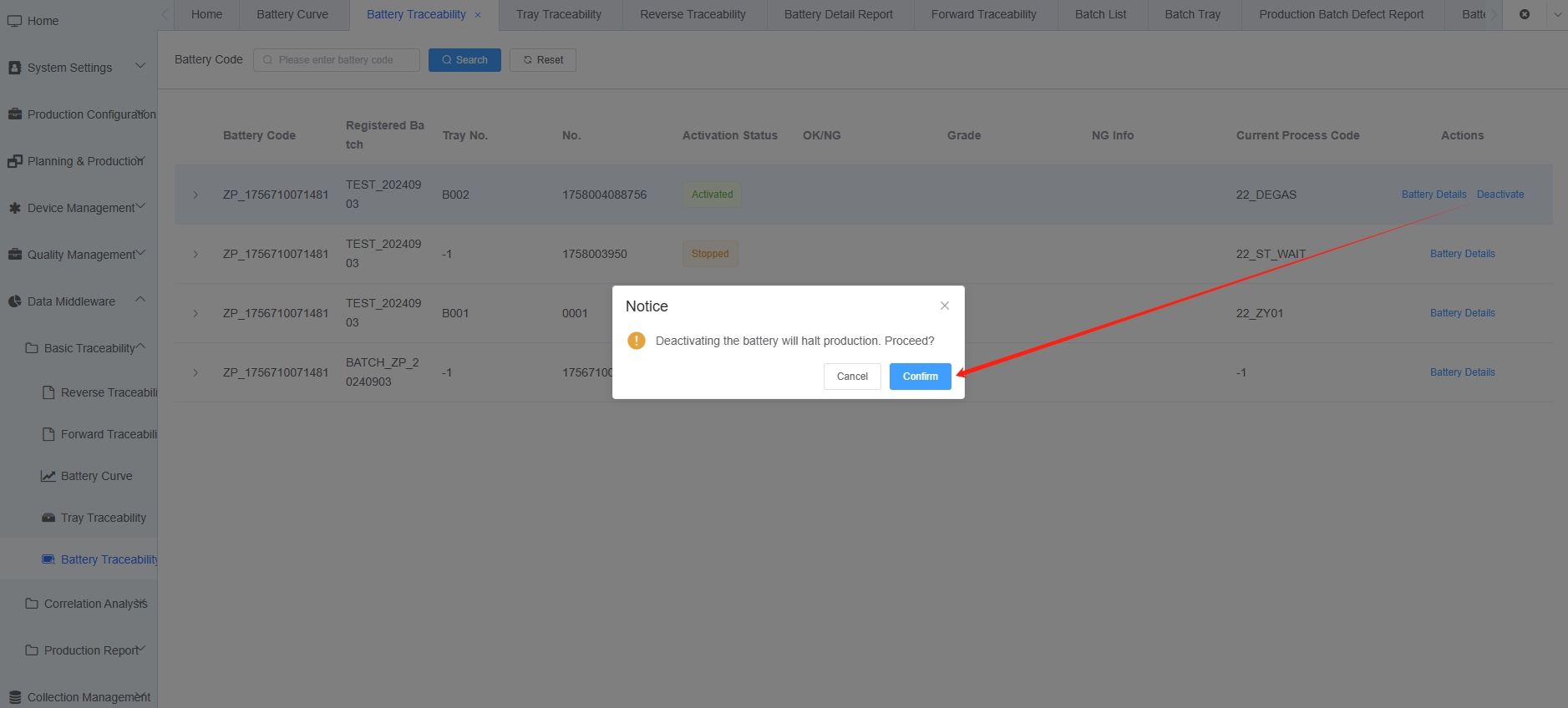

5. Deactivate
5.1 Function Description
Deactivate is used to set an activated battery to stopped status. After deactivation, the battery can no longer continue production. Use with caution.
5.2 Operation Steps
- In the query result list, find the target battery row (status is "Activated")
- Click [Deactivate] button in the action column
- System pops up confirmation dialog: "After confirmation, the battery will be deactivated and cannot continue production"
- Click [OK] to execute deactivation
- After successful operation, the battery's activation status becomes "Stopped"
[Note] [Deactivate] button only displays for batteries with status "Activated". [Note] If no other batteries in the tray are activated after deactivation, the tray will also be stopped.
Screenshots:

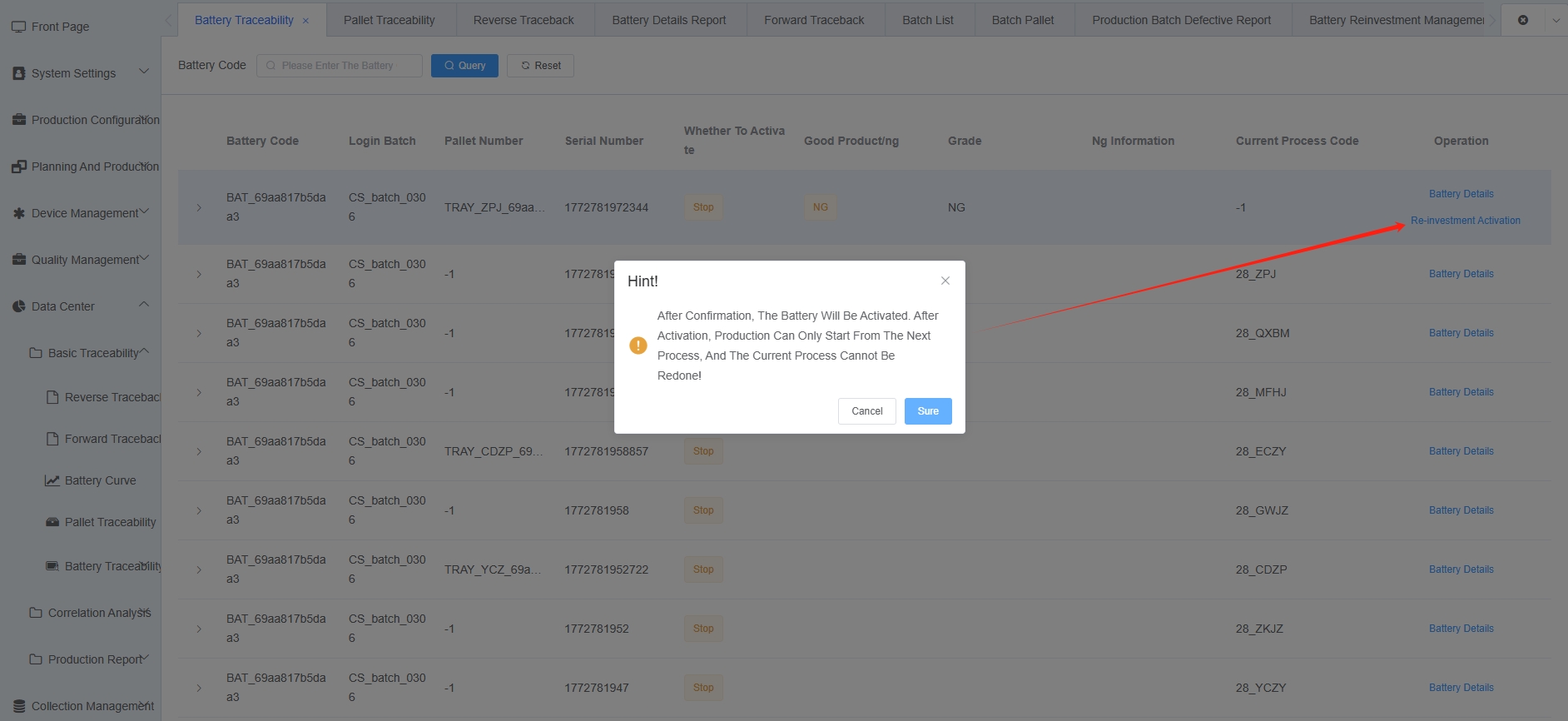

6. Reactivate for Retrial
6.1 Function Description
Reactivate for retrial is used to reactivate a stopped battery that has been judged as NG, allowing it to continue production from the next process. After activation, the battery can only start from the next process and cannot re-execute the current process.
6.2 Operation Steps
- In the query result list, find the target battery row (status is "Stopped" and Good/NG is "NG")
- Click [Reactivate for Retrial] button in the action column
- System pops up confirmation dialog: "After activation, production can only start from the next process, cannot redo the current process"
- Click [OK] to execute reactivation
- After successful operation, the page automatically refreshes the query results
[Note] [Reactivate for Retrial] button only displays for batteries with status "Stopped" and judgment "NG".
Screenshots:
7. Related Functions
| Function | Relationship | Description |
|---|---|---|
| Battery Curve | Complementary | Battery Traceability views process set values and result parameters; Battery Curve views charge/discharge curve data |
| Tray Traceability | Data Association | Can find battery IDs under a tray through Tray Traceability, then jump to Battery Traceability for details |
| Production Batch Management | Data Source | Battery batch information comes from the Production Batch Management module |
| Battery Retrial Management | Function Association | Reactivate operation is related to the retrial process in Battery Retrial Management module |
